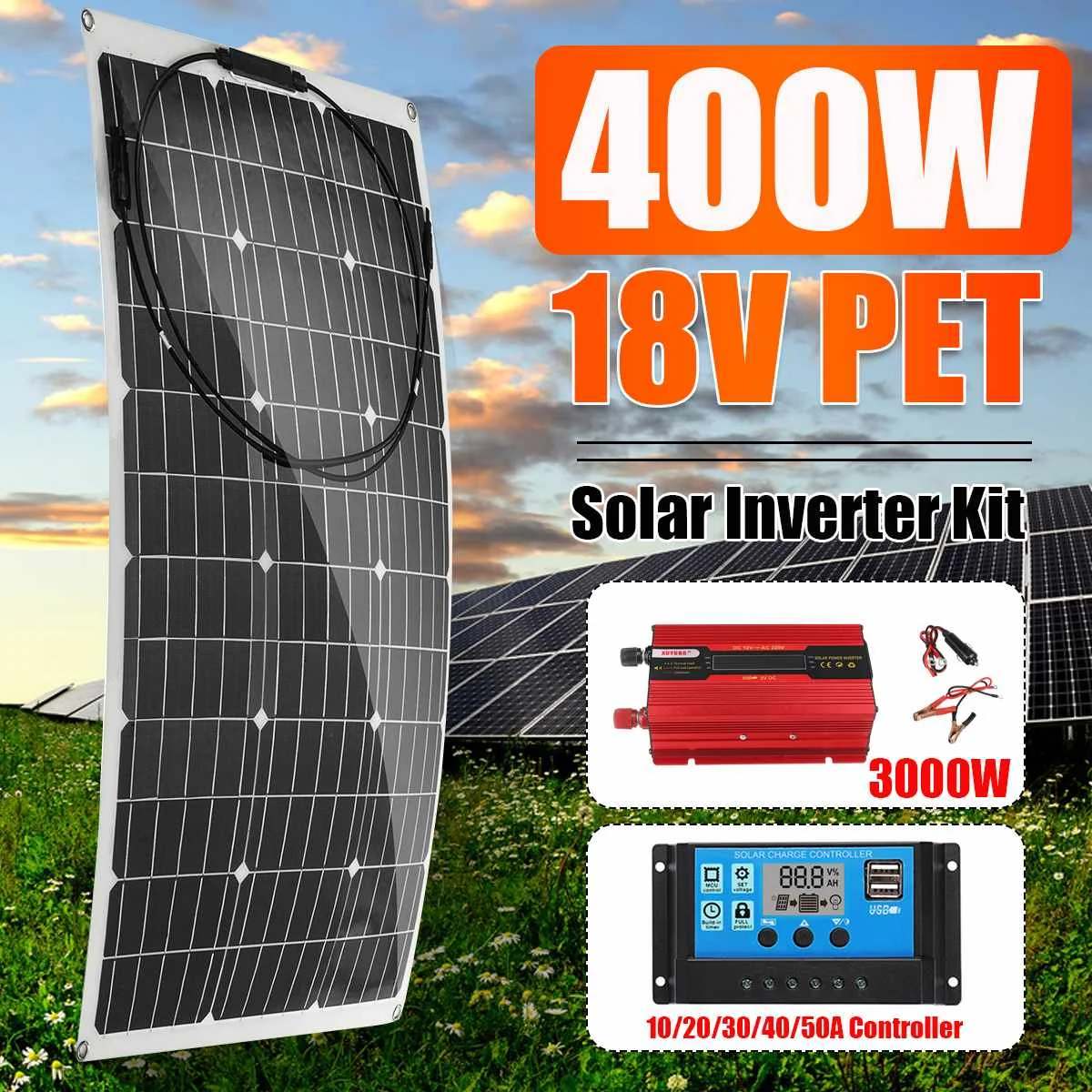

The package includes:
1X400W Solar Panel
1X Solar panels Battery Charge Controller(10/20/30/40A/50A)
1x Power Inverter
1x Cigarette Lighter Line
2 x Clips

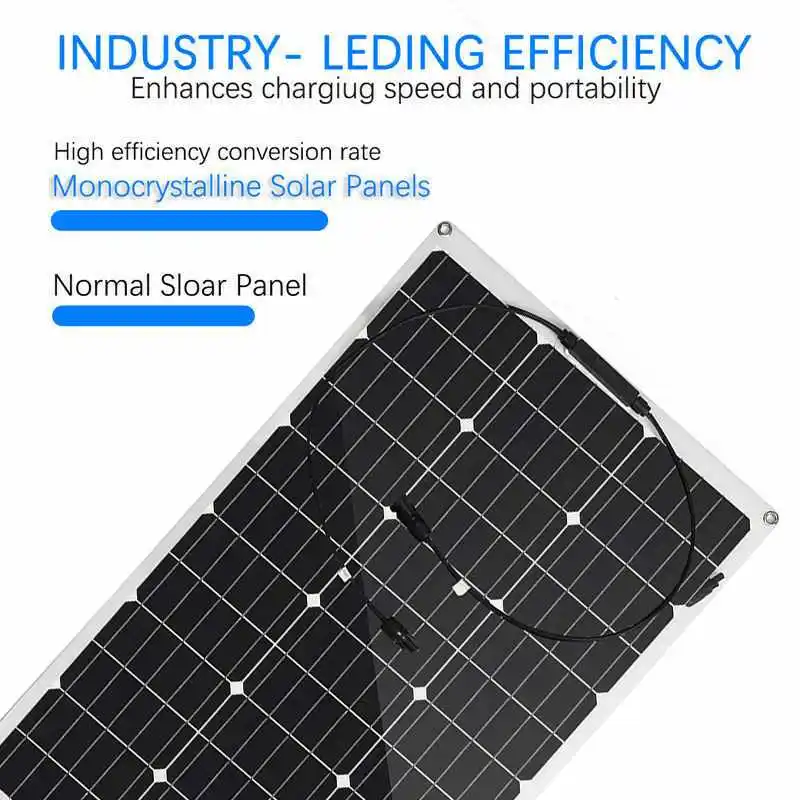

● 400W Solar Panel
1. High cell efficiency with quality silicon materials for long term output stability and reliability.
2. Strictly quality control ensure the stability and reliability, PET front panel, flexible, light and durable, light weight
3. High transmittance low iron tempered glass with enhanced stiffness and impact resistance
SLA Battery Voltage: 18V
Type of Solar Cell: Monocrystalline
Open Circuit Voltage(Voc): 18V
Maximum Ystem Voltage: 18V

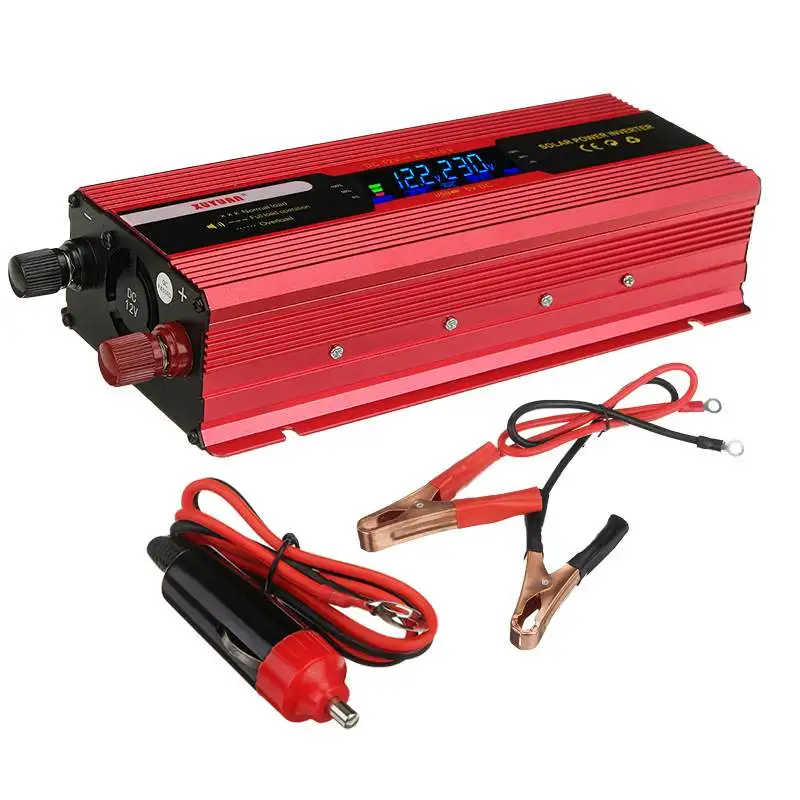

● 3000W Power Inverter Specification:
-Intelligent dual digital display
-Pure sine wave inverter has low interference to precision equipment, low noise and strong load adaptability
-With over temperature protection, input high and low temperature protection, overload protection, short circuit protection, etc.
-High conversion rate, reduced conversion loss, continuous voltage.
-Intelligent temperature control silent fan, the fan will automatically start when the inverter starts.
Material: Aluminum Aalloy Casing
Enter Voltage: 12V
Output Voltage: 220V
Inverter Efficiency: 85%
Output Waveform: Modified Sine Wave
Number of Socket: ONE

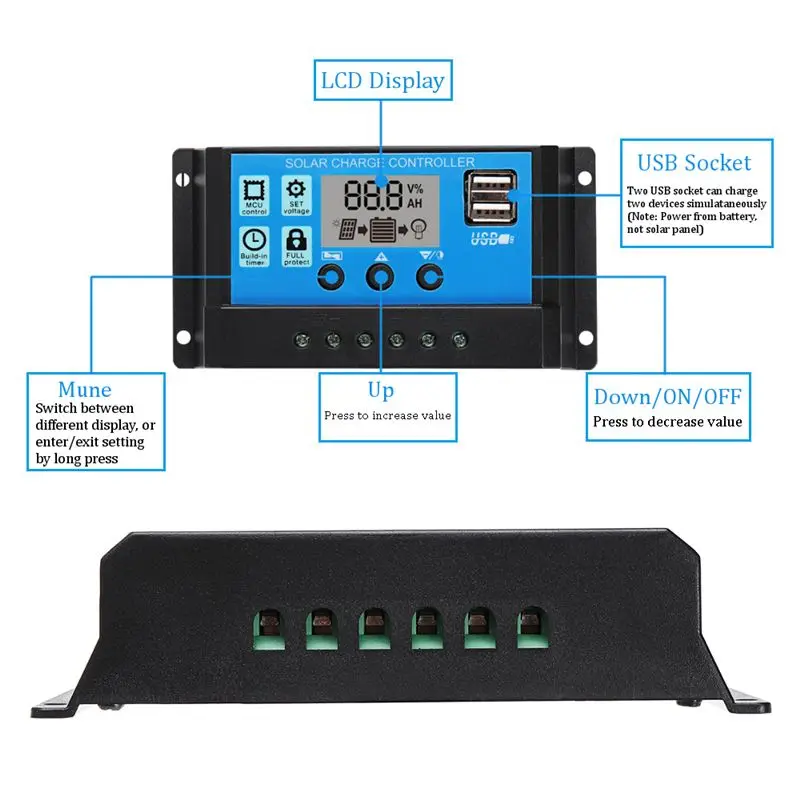

● 10-50A Controller
1.Build-in industrial micro controller.
2.Fully 4-stage PWM charge management.
3.One-key setting,digital display, auto memory function.
4.Dual mosfet Reverse current protections, low heat productions.
5.Build-in short-circuit protections, open-circuit protections, reverse protections, over-load protections.
Buck charge: 28.8V
Float charge: 27.4V
USB output: 5V/3A
Discharge stop: 21.4V
Voltage: DC 12V/24V
Max solar input: <50V
1.Make sure your battery has enough voltage for the controller to recognize the battery type before first installation.
2.The battery cable should be as short as possible to minimize loss.
3.The regulator is only suitable for lead acid batteries: OPEN, AGM, GEL(It is not suited for nickel metal hydride, lithium ions or other batteries).
4.The charge regulator is only suitable for regulating solar modules. Never connect another charging source to the charge regulator.

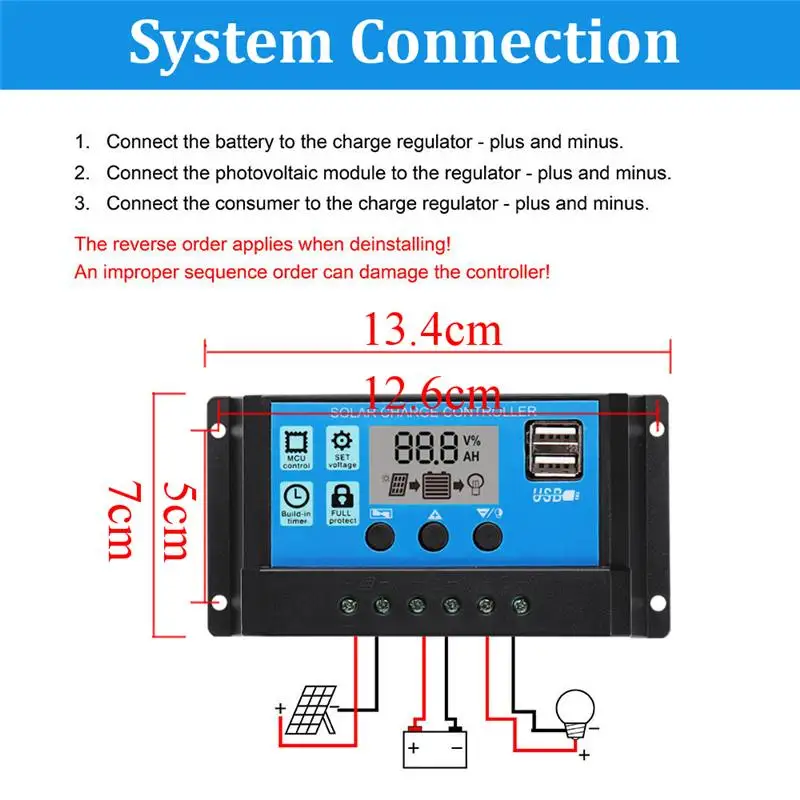

1.Connect the battery to the charge regulator – plus and minus.it will show 1 ,if it detects 12V battery, 2 if it detects 24V battery.
2.Connect the photovoltaic module to the regulator – plus and minus.
3. Connect the consumer to the charge regulator – plus and minus.
Please allow 0-2mm error due to manual measurement. pls make sure you do not mind before you bid
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
- Brand Name: KINCO
- Origin: CN(Origin)
- Foldable Solar Panel: No
- Number of Panels: 1
- Certification: CE
- Flexible Solar Panel: Yes
- Type: Solar Panel
